Feeds multiple packaging machines, with different weight variations all at the same time.

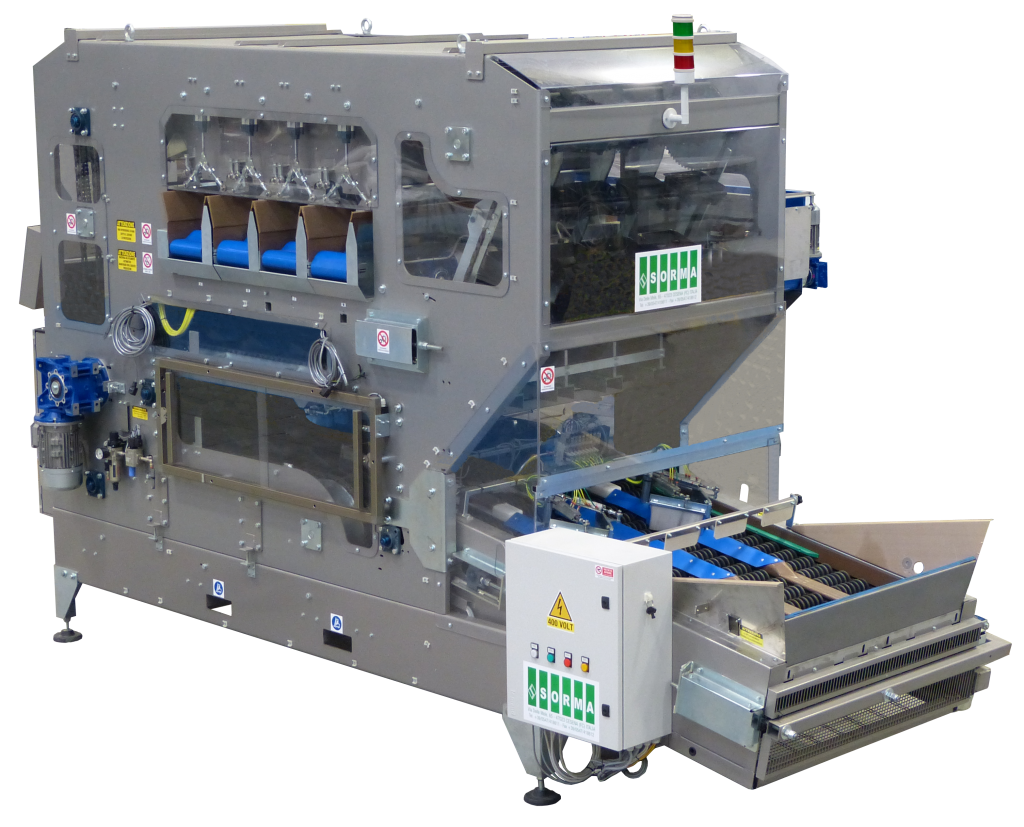

This is the high capacity weigher to choose when different pack types and weights are needed from a single weigher. The WD4-125 weighs up to 100 packs a minute, working with multiple packaging machines across weight variations from 500g up to 5 kg at the same time.
Produce travels from the in-feed through the ‘singulator’, which channels the produce into a single stream to be gently loaded into cups on the conveyor and weighed to reach the pre-set weight requirements of each pack. Weight tolerances are set precisely with over or underweight produce retained in the cups to be packed again.
WD4-125 at a Glance
- Packs up to 100 packs per minute
- Works with multiple packaging machines and weights at the same time
|Output:||Up to 100 packs per minute|
|Pack weight:||From 500g to 5 kg|
|Fruit size:||Minimum 30mm – maximum 100mm|
|Power required:||6.5 kW - 50 Hz - 400V|
|Air consumption:||120 Nl/min - 6 bar|
