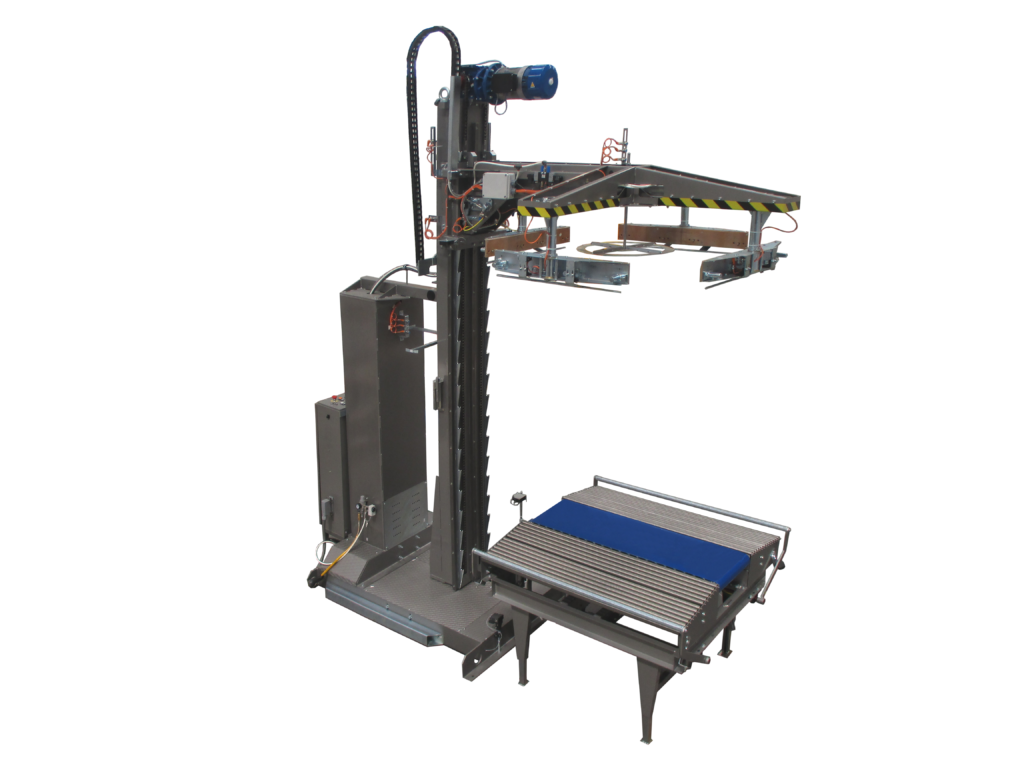

Sorma DSC-107

This is a de-palletiser to speed up unloading stacked pallets

The de-palletiser unloads stacked boxes from pallets, and copes with different box heights and tiers of up to 7 layers. The DSC-107 handles 2 pallets at a time and allows the operator to select boxes from either pallet at once, or unload totally from one with the other on the ejection pallet.

The DSC-107  has an integrated box ejection conveyor to remove unpacked boxes.

DSC-107 at a Glance

  • Up to 1400 boxes per hour
  • Maximum pallet stack of 2400 mm high
  • Unloads pallets of different heights and tiers up to 7 layers
  • Box ejection conveyor

Suits: Unloading pallets

Output:Up to 1400 boxes per hour
Height:Maximum 2400 mm
Power required:4 kW - 50 Hz - 400V
Air consumption:250 Nl/min - 6 bar

Suits: Unloading pallets
