This bagger adds cardboard headers to the pack for that something different

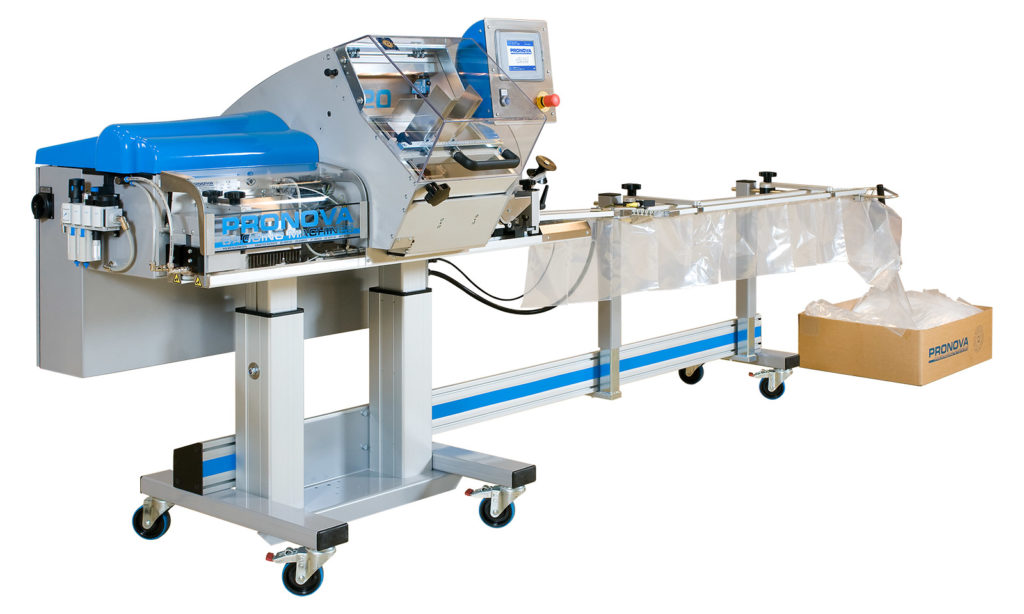

Pronova 520
![](https://www.jtechsystems.com.au/wp-content/uploads/2018/05/520_frilagd.jpg)
This robust bagger adds cardboard headers to the bag as they are sealed. As with all Pronova baggers, this one is simply designed and has only a few moving parts, so it’s easy to use and easy to maintain.
The 520 has opening arms that are up to 5 metres in length and the bags are linked together and hang unsupported along these arms. The bagger opens several bags at a time, fills all of them simultaneously, seals the bag and adds the header. Bag sizes can be between 50 – 800 mm wide, and the cardboard headers between 50 – 250 mm wide and 50 – 100 mm high.
Bag openings are adjustable for different shapes and sizes of produce but the 520 will form, fill and seal up to 50 bags a minute depending on the bag size and width.
520 at a Glance
- Adds cardboard headers 50 – 250 mm wide and 50 – 100 mm high
- Bag width – 50 – 800 mm
- Makes stand up pouches
- Opening arms up to 5 metres in length
- Continuous or intermittent bag feed
Suits: Pouch packs
Packing speed: | Depends on bag-width but up to 50 bags per minute |
Bag width: | 50 - 800 mm |
Headers: | 50 - 250 mm wide and 50 - 100 mm high |
Bag options: | Re-closable, perforations, hanger holes, stand-up pouch |
Bag materials: | PE, PP, laminates |
Electrical supply: | 400 V 3-phase |
Power: | 3 kW |
Compressed air: | 600 kPa, 7 m3/h |
